ENC28J60 network board

This little project was created to establish a connection between an Atmega (mounted on a breadboard) and the local network.

For the board, I used lots of information, which I found on the Net. Here are some good resources. All the parts can be bought (for example) at Pollin.

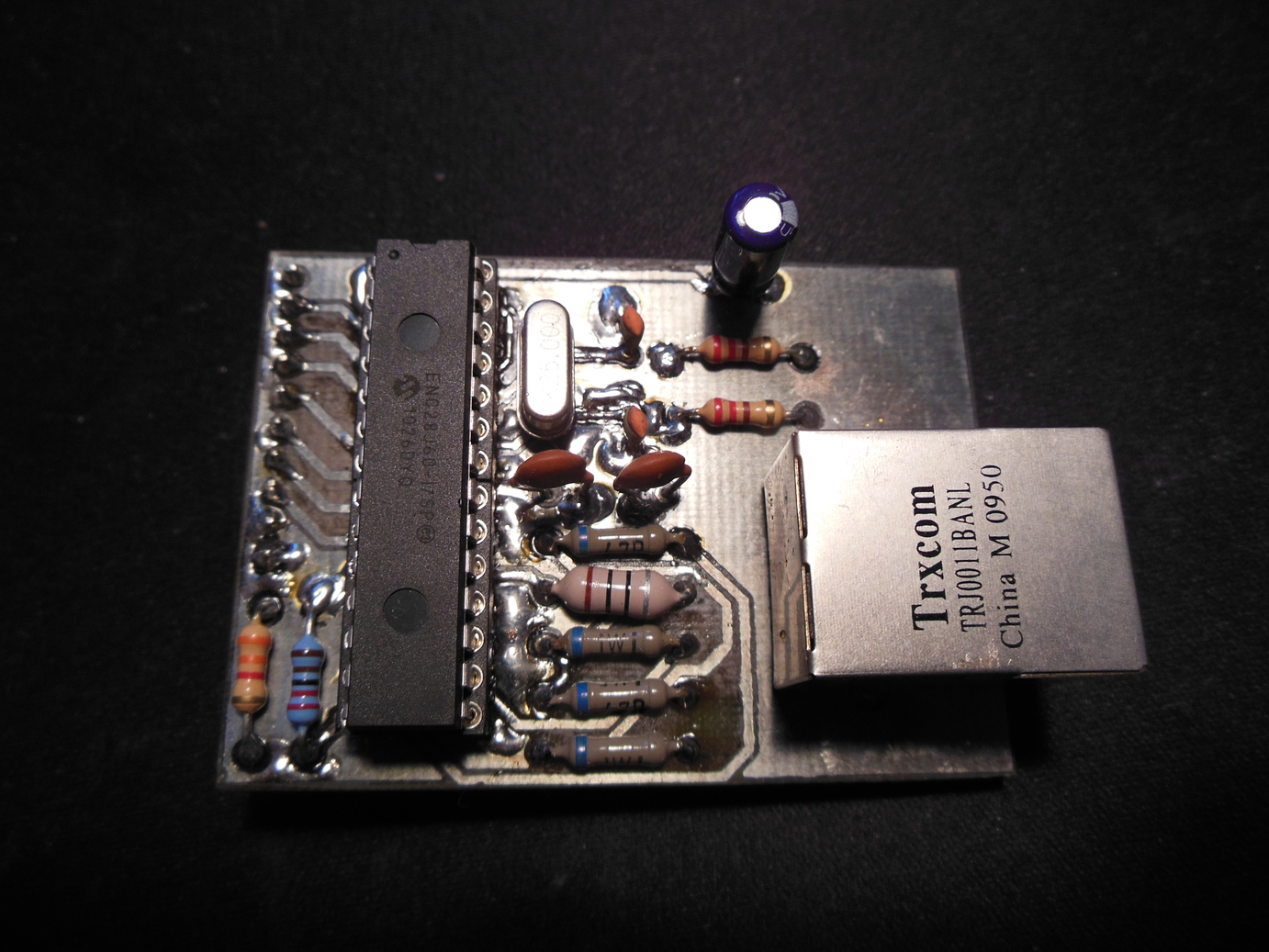

ENC28J60 network board front view
ENC28J60 network board front view

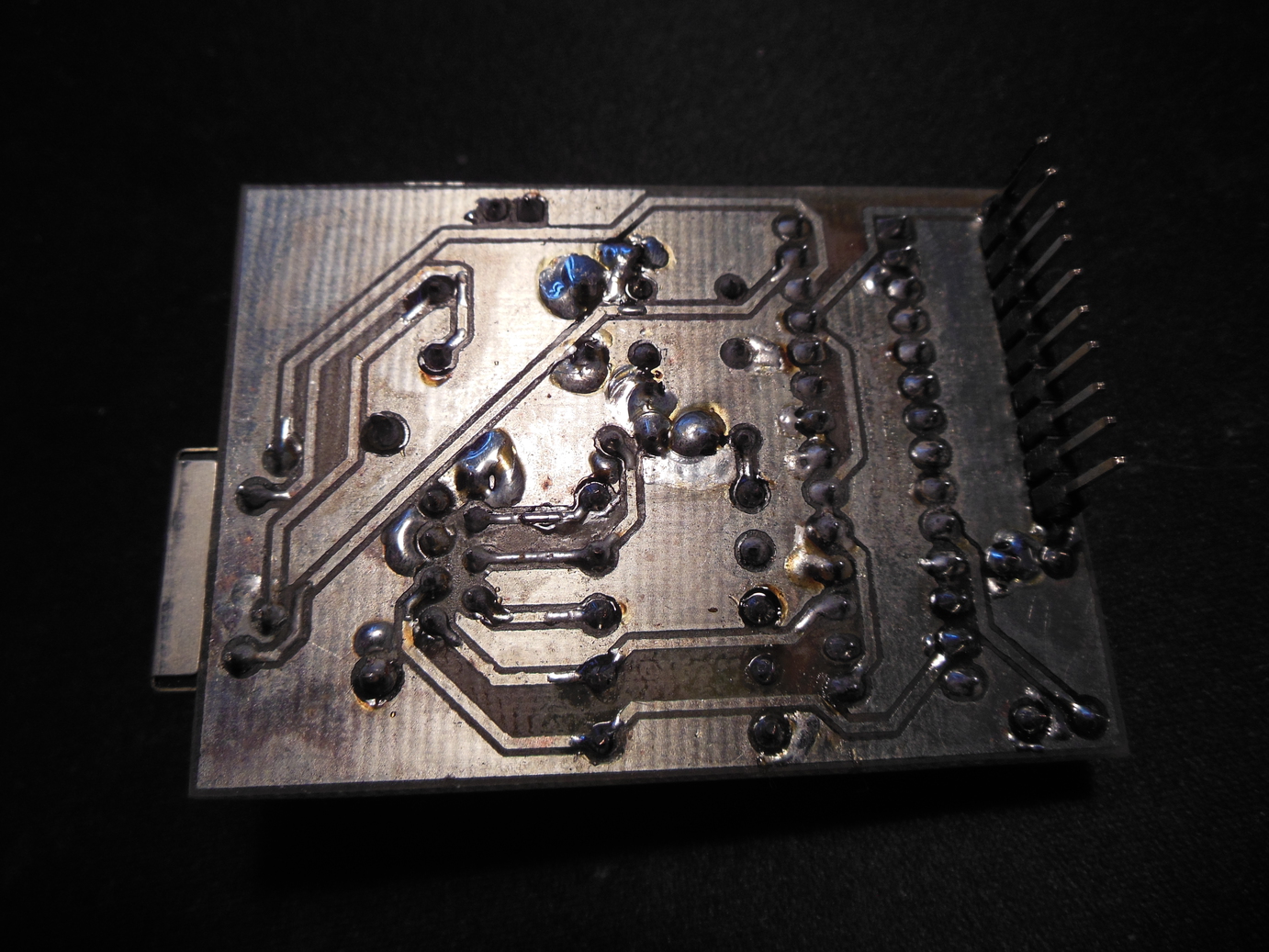

ENC28J60 network board back view
ENC28J60 network board back view



The schematic is given below:

ENC28J60 Schematic

The PCB is given below:

enc28j60-Front

enc28j60-Back
